Muller 2000 ton Double Action Hydraulic Press
Muller 2000 ton Double Action Hydraulic Press
Contact us for price
or
Call 44 (0)1384 457 595
Description

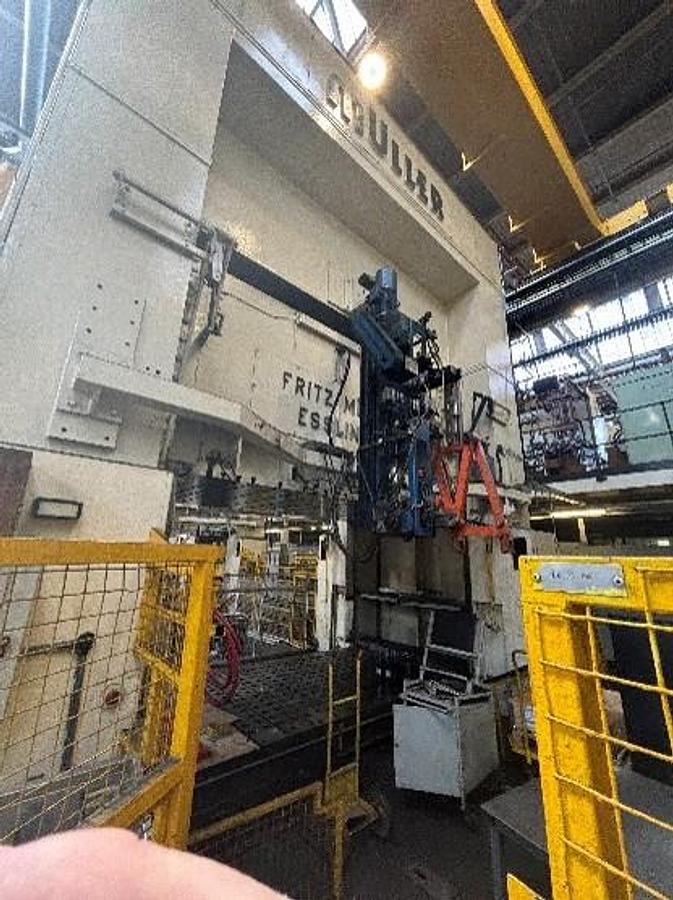

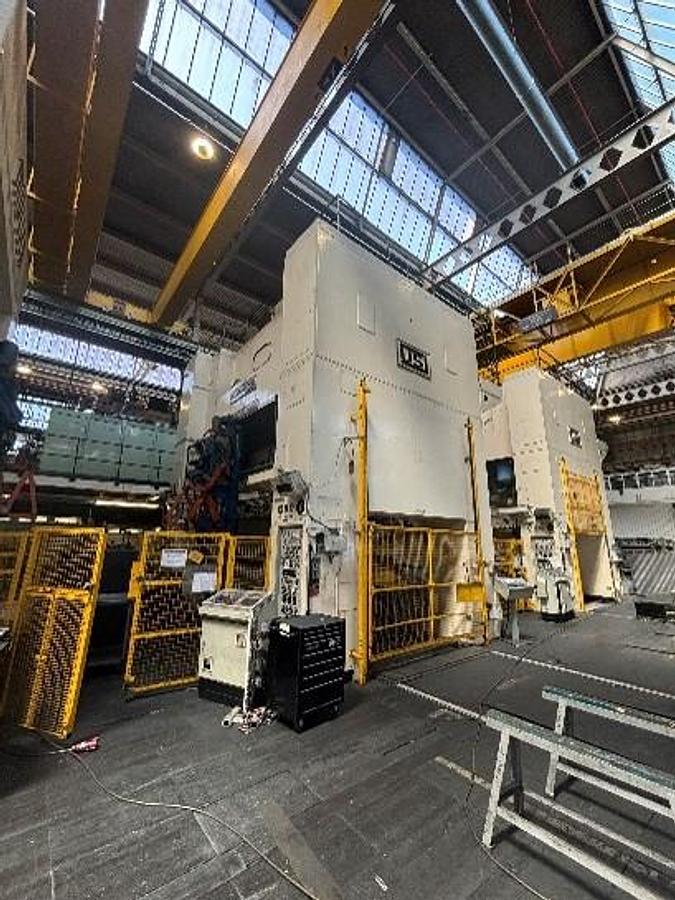

Muller 2000 ton Double Action Hydraulic Press with one moving bolster through the side columns
Specifications
| Manufacturer | Muller |
| Model | BZE 2000-45.2.1 |
| Year | 1980 |
| Condition | Used |
| Stock Number | HUK2148 |
| Capacity | 2000 ton |
| Bed area | 4500 mm x 2200 mm |
| Inner slide stroke | 1350 mm |
| Blankholder stroke | 1350 mm |
| Distance between columns | 3500 mm |
| Draw cushion stroke | 300 mm |
| Inner slide area | 3850 mm x 1650 mm |
| Blankholder area | 4000 mmm x 2200 mm |
| Draw cushion capacity | 400-ton |
| Inner slide capacity | 1300-ton |
| Blankholder capacity | 700 mm |
| Height above floor | 8170 mm |
| Total height | 11170 mm |
