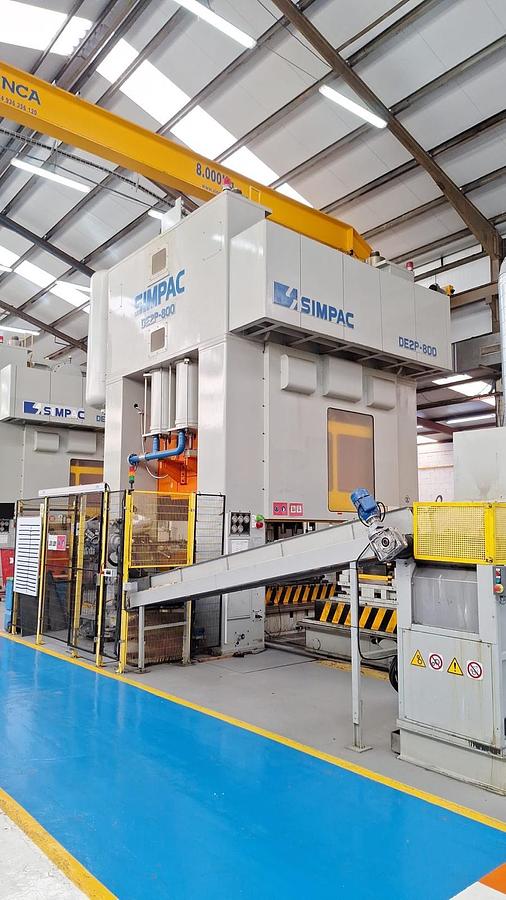

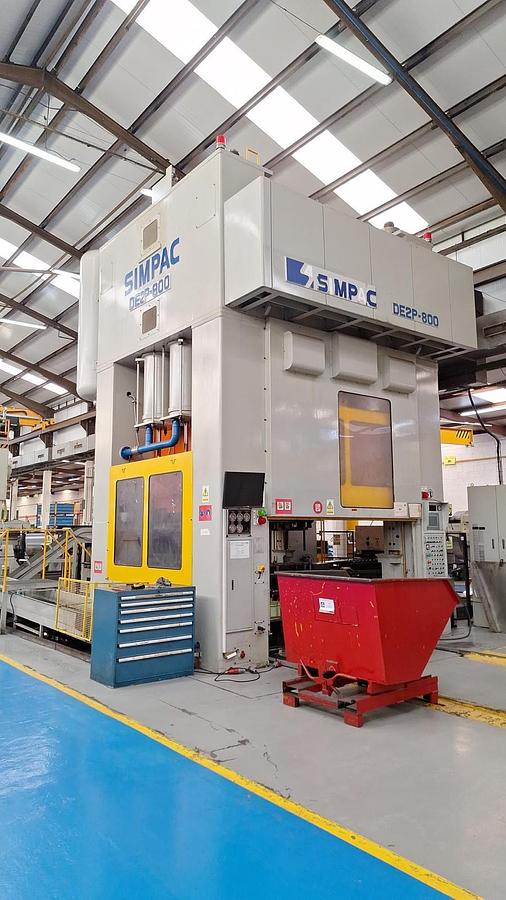

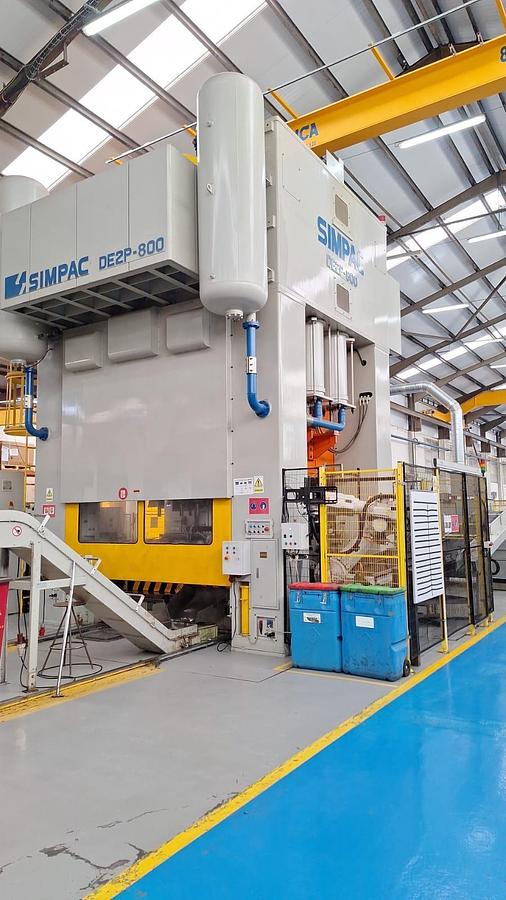

2 x SIMPAC 800 ton Mechanical Presses with Feed Lines
2 x SIMPAC 800 ton Mechanical Presses with Feed Lines
Contact us for price
or
Call 44 (0)1384 457 595
Description

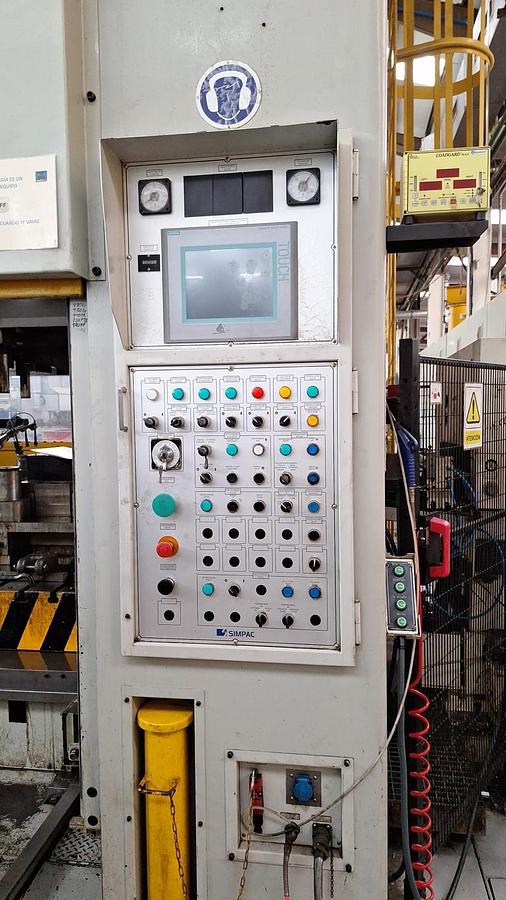

COMPLETE WITH PNEUMATIC CLUTCH, SIEMENS SIMATIC MULTI PANEL,

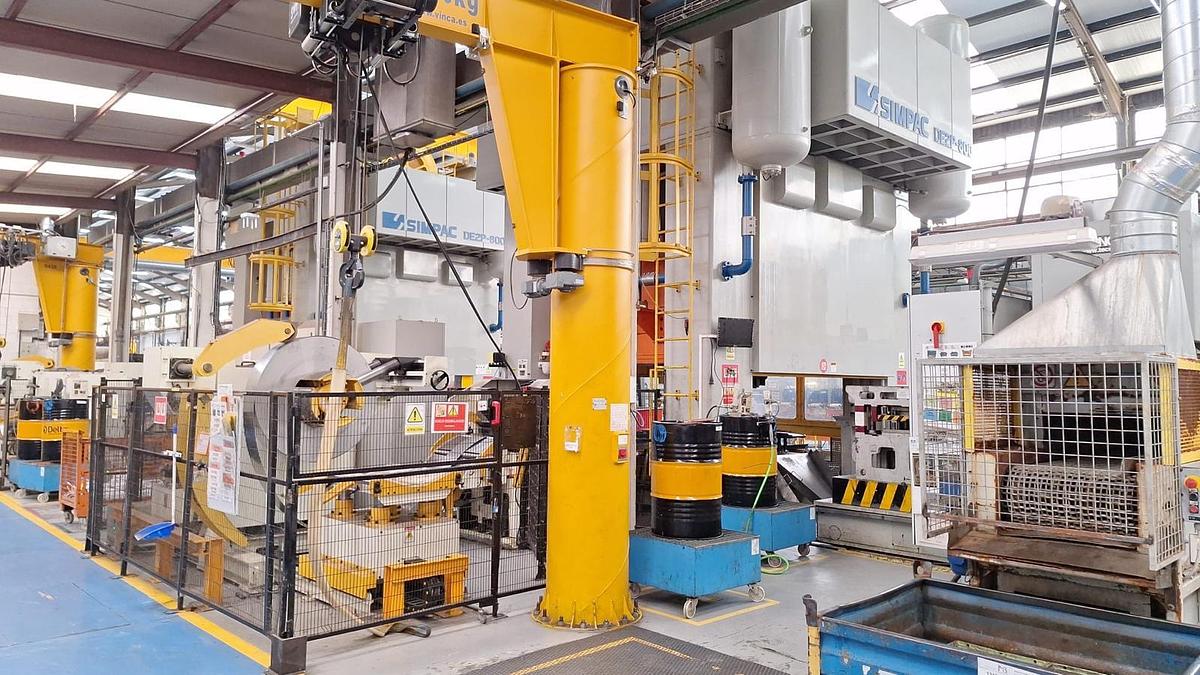

TOOL LOADING AND FEED LINE
Specifications
| Manufacturer | SIMPAC |
| Model | DE2P-800 |
| Year | 2014 |
| Condition | Used |
| Stock Number | MOS3790 |
| Capacity | 800 tons |
| Bed area | 2600 mm x 1600 mm |
| Slide stroke | 600 mm |
| Slide adjustment | 400 mm |
| Maximum tool shut height | 1000 mm |
| Bed height above floor | 750 mm |
| Coil weight | 5 tonnes |
| Strip width | 40 - 760 mm |
| Thickness | 0.5 - 4.5 mm |
| Minimum coil ID | 508 mm |
| Maximum coil OD | 1200 mm |
| Feeder speed | 16 m/min |
| Speed (adjustable max) | 24 spm |
