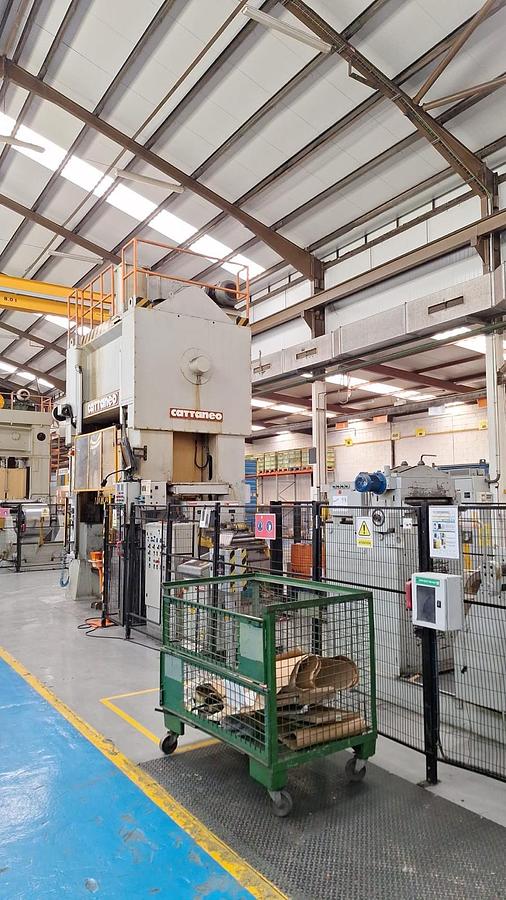

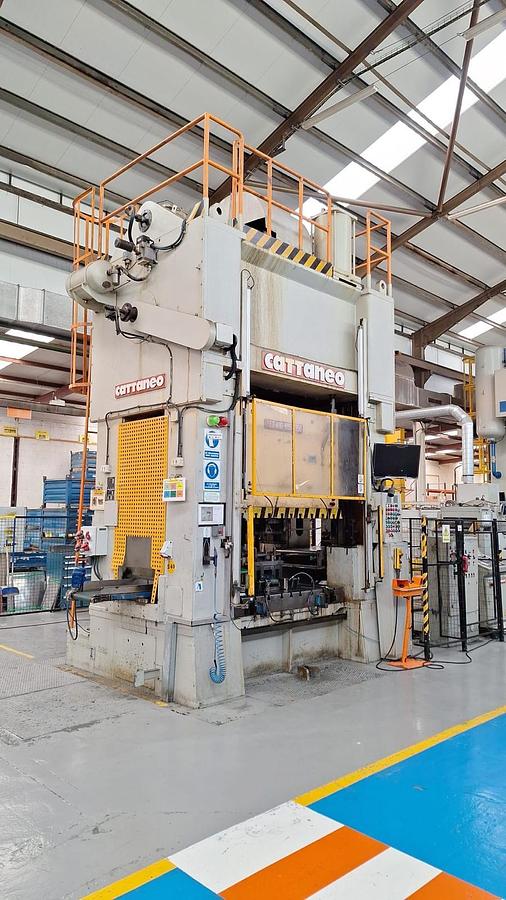

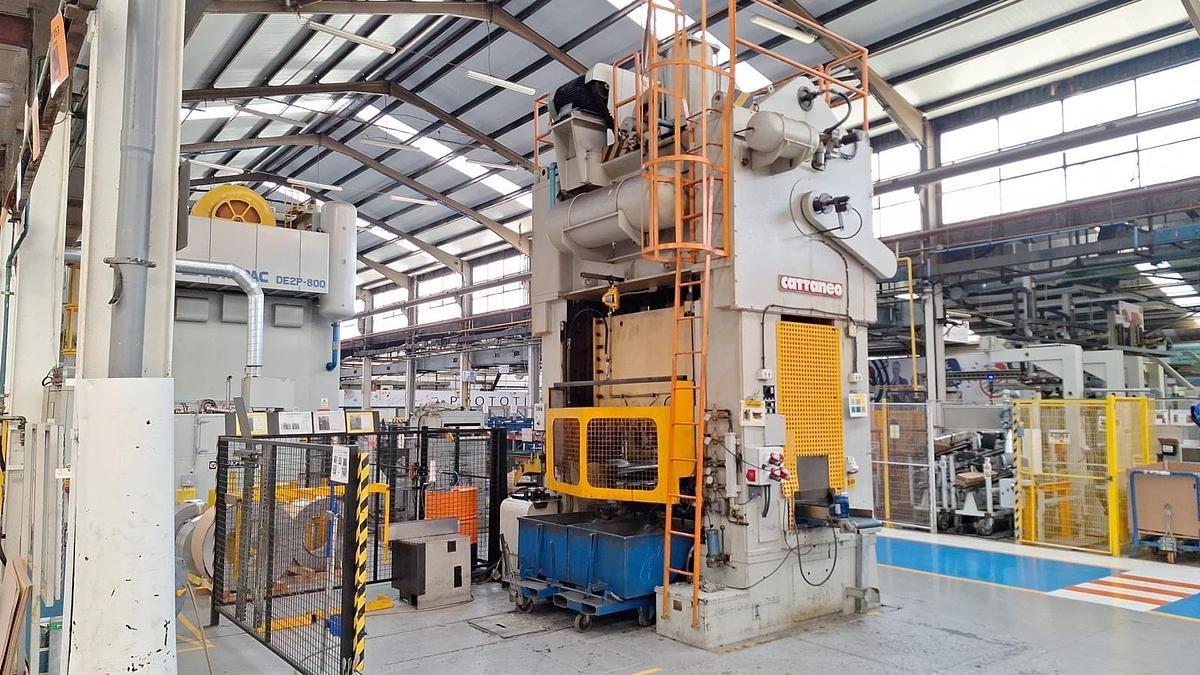

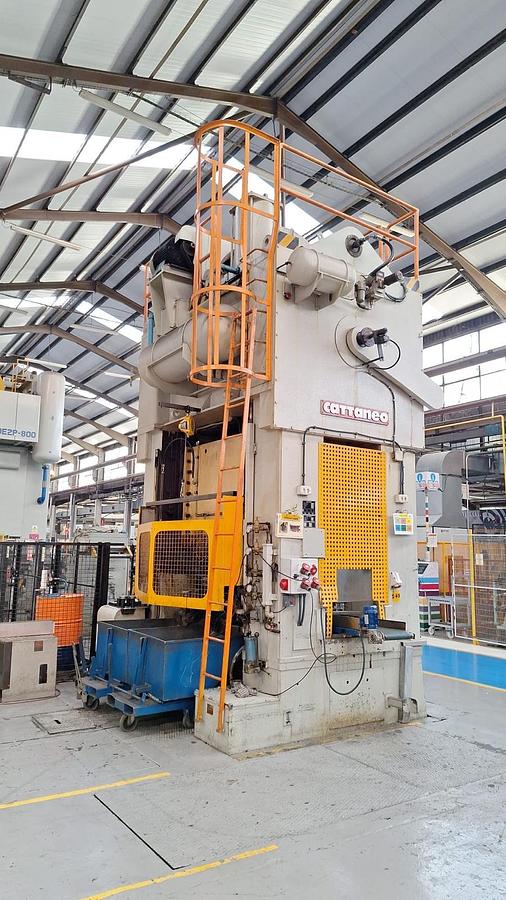

Cattaneo 400-ton Mechanical Press With Feed Line
Cattaneo 400-ton Mechanical Press With Feed Line
Contact us for price
or
Call 44 (0)1384 457 595
Description
COMPLETE WITH PNEUMATIC CLUTCH, MANUAL TOOL LOADING AND FEED LINE
Specifications
| Manufacturer | Cattaneo |
| Model | SC2.400.1850.1380 |
| Year | 1983 |
| Condition | Used |
| Stock Number | MOS3789 |
| Capacity | 400 tons |
| Bed area | 1850 mm x 1350 mm |
| Stroke length | 250 mm |
| Maximum tool shut height | 700 mm |
| Slide adjustment | 250 mm |
| Height above floor | 845 mm |
| Adjustable speed | 35 spm |
| Feed direction | Left to Right |
| Coil weight | 5 tonnes |
| Strip width | 80-850 mm |
| Maximum coil OD | 1300 mm |
| Thickness | Up to 4.75 mm |
| Feeder speed | 9 m/min |
