4 x Hydraulic/Mechanical Press Line

Quantity (1)

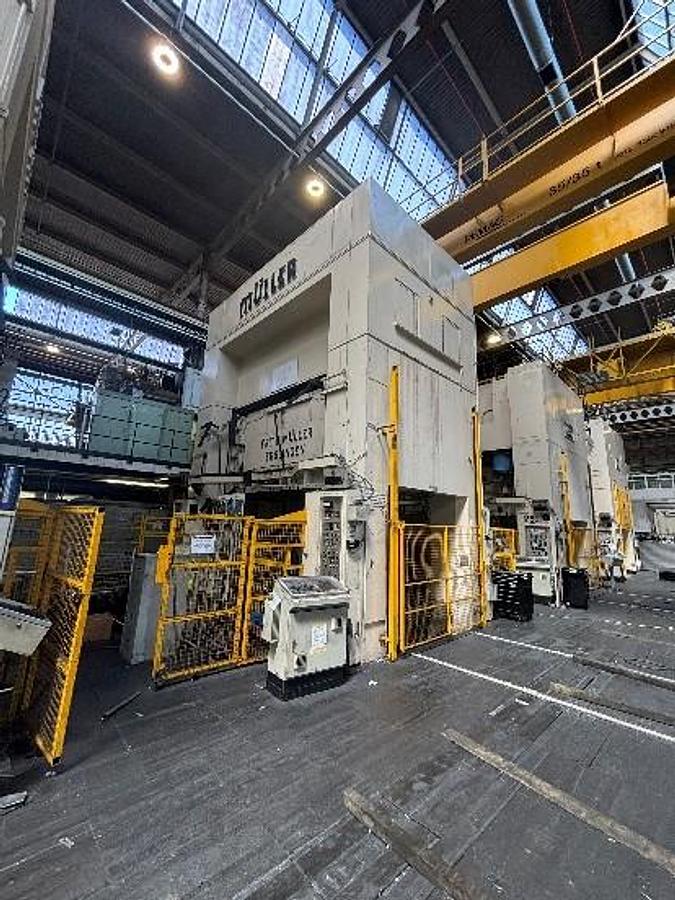

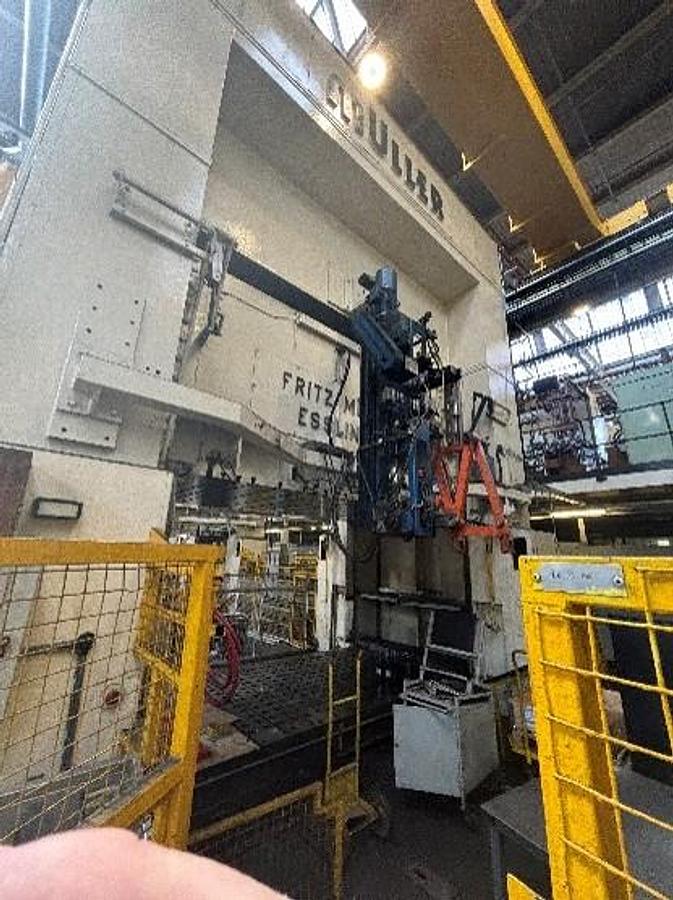

MANUFACTURER                         Muller

MODEL AND TYPE                         BZE2000-45.2.1 Double Action Hydraulic Press

YEAR OF MANUFACTURER            1980

Capacity                                              2000 tons

Inner slide capacity                             1300 tons

Blank holder capacity                          700 tons

Draw cushion capacity                        400 tons

Inner slide stroke                                 1350 mm

Blank holder stroke                             1350 mm

Draw cushion stroke               300 mm

Bed area                          4500 mm x 2200 mm

Inner slide area                                   3850 mm x 1650 mm

Blank holder area                                4500 mm x 2200 mm

Draw cushion area                              3500 mm x 1600 mm

Daylight (stroke up)                            2250

Total height                                          11170 mm

Height above floor                              8170 mm

Complete with one moving bolster each press through side columns

Quantity (1)

MANUFACTURER                              Muller

MODEL AND TYPE                            BZE2000-45.2.1 Double Action Hydraulic Press

SERIAL NO.                                        2055

YEAR OF MANUFACTURER             1980

Capacity                                              1250 tons

Draw cushion capacity                        250 tons

Slide stroke                                         1350 mm

Draw cushion stroke                           300 mm

Bed area                                             4500 mm x 2200 mm

Slide area                                            4550 mm x 1100 mm

Daylight (stroke up)                            2250

Total height                                     11000 mm

Height above floor                            7865 mm

Complete with one moving bolster each press through side columns

Quantity (2)

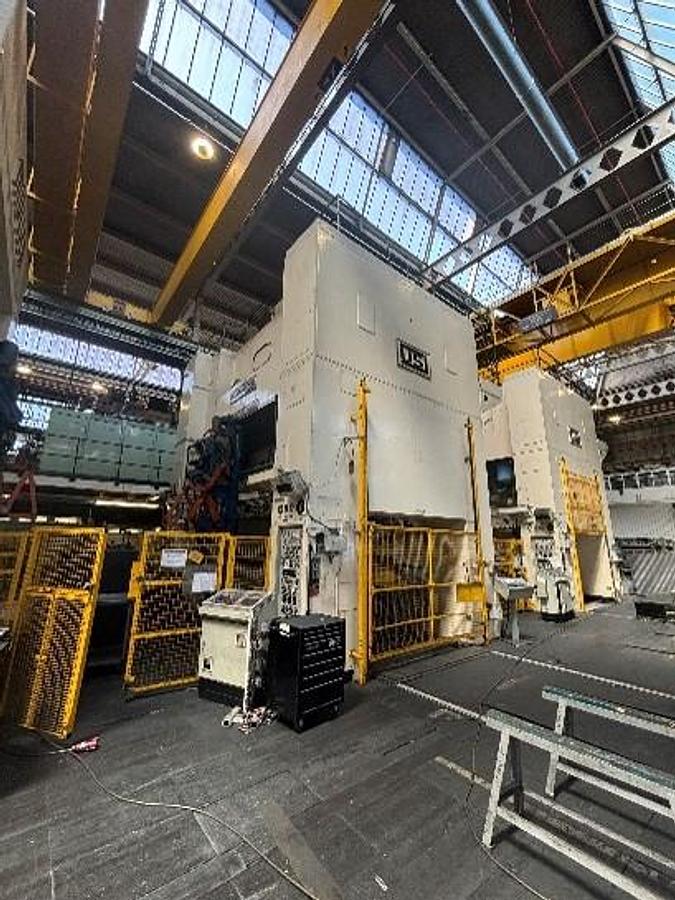

MANUFACTURER                      USI Clearing

MODEL AND TYPE                 S4-1000-4600-2200 4 Point Single Action Mechanical Presses

SERIAL NO’S                        31-3511

Capacity                                        1000 tons

Bed area                                      4600 mm x 2200 mm

Slide stroke                                  760 mm

Slide adjustment                           570 mm

Maximum shut height SDAU  1470 mm

Variable speed                         6-13.5 spm

Number of cushions                 2

Number of bed openings          2

Cushion stroke                      300 mm

Complete with one moving bolster each press through side columns.
