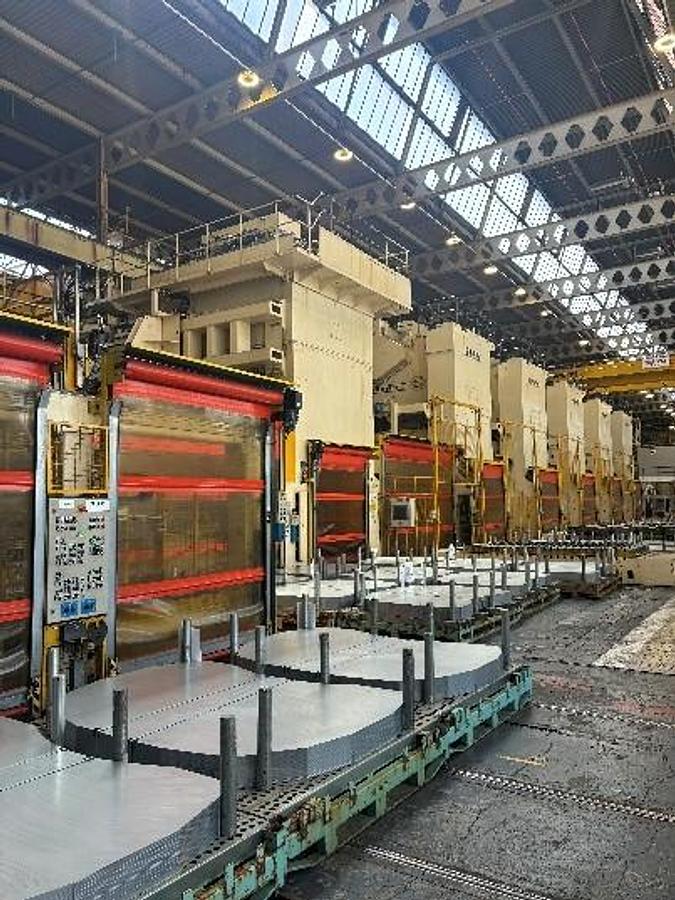

6 x Hydraulic/Mechanical Press Line

Quantity (1)

MANUFACTURER    Muller

MODEL AND TYPE BZE 1600-36.1.1 Double Action Hydraulic Press

SERIAL NO.              1991

YEAR OF MANUFACTURER          1979

Capacity                                           1600 tons

Inner slide capacity                       1000 tons

Blankholder capacity    600 tons

Inner slide stroke             1440 mm

Blankholder stroke                           1160 mm

Bed area                               3650 mm x 2130 mm

Inner slide area                            3050 mm x 1650 mm

Blankholder area                        3760 mm x 2130 mm

Daylight (stroke up)                     2510 mm + 430 mm

Total height                                      11000 mm

Height above floor                          8920 mm

Quantity (5)

MANUFACTURER                           Wilkins & Mitchell

MODEL AND TYPE                       S4-800-144-84 4 Point Single Action Mechanical Presses

SERIAL NO’S                                 77/3493-7, 77/3494-7, 77/3495-7, 78/3496-7, 78/3497-7

YEAR OF MANUFACTURER         1977-1978

Capacity                                          800 tons

Slide area                                        3650 mm x 2130 mm

Bed area                                           3650 mm x 2130 mm

Thickness of bolster                          280 mm

Bolster height above floor level       635 mm

Slide stroke                                       762 mm

Maximum shut height SDAU          1470 mm

Minimum shut height SDAU          1115 mm (adaptor plate to bolster face)

Slide adjustment                               355 mm

Variable speed                                  10-18 spm

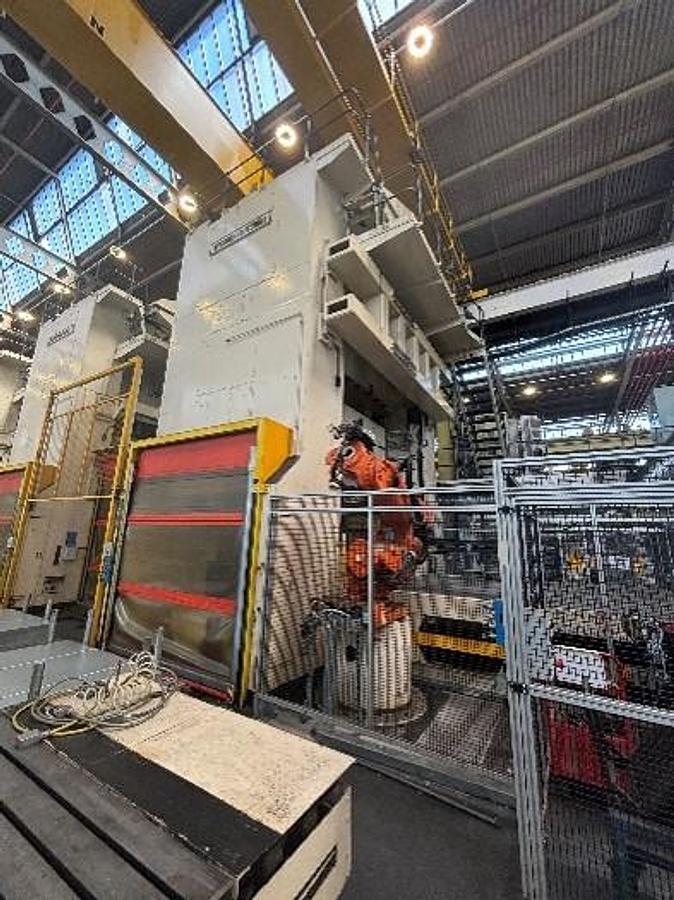

Complete press line, with two moving bolsters each press through side columns, destacker system with two loading tables, robot at the head of the line, and iron hands in-between each press, robot at the end of the line and main parts conveyor, completely rewired, Siemens S7 controls.
