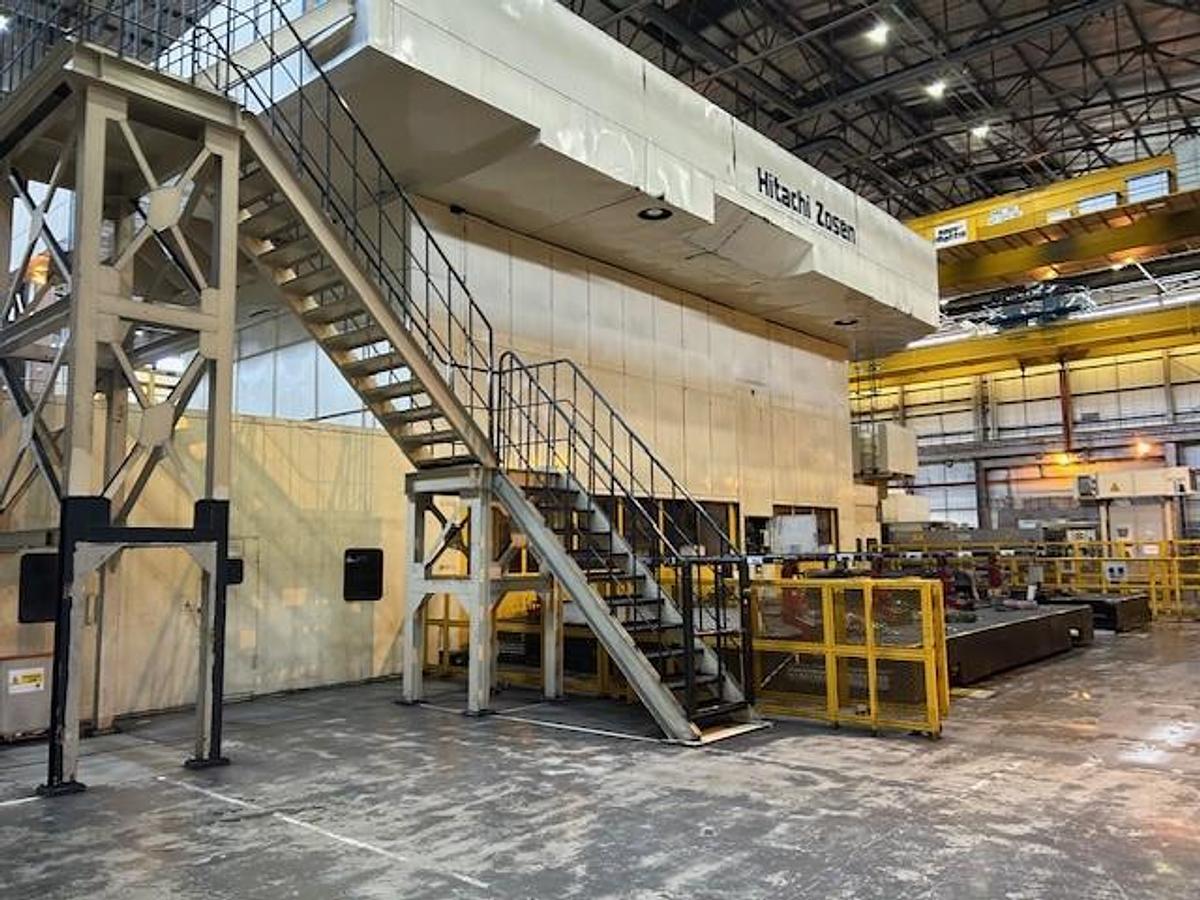

2 x Hitachi Zosen 5000-ton Transfer Presses
2 x Hitachi Zosen 5000-ton Transfer Presses
Contact us for price
or
Call 44 (0)1384 457 595
Description
Die Space No.1 (stage 1) Die Space No. 2 (stages 2-4)
Capacity 2300 tons 2700 tons
Slide stroke 1095 mm 1100 mm
Slide adjustment 75 mm 175 mm
Shut height (SDAU) 1100 mm 1300 mm
Slide area 4300 mm x 1900 mm 4300 mm x 2000 mm x 3 faces
Bed area 4500 mm x 2100 mm 4500 mm x 4500 mm x 3 faces
Specifications
| Manufacturer | Hitachi Zosen |
| Model | CT8-5000-2500X4-4500 |
| Condition | Used |
| Stock Number | MUK2311 |
| Cushion capacity | 200 tons (max) |
| Cushion stroke (effective) | 150 mm - 300 mm |
| Cushion stroke (adjustment length) | 150 mm |
| Number of stamping stages | 4 |
| Feed stroke | 2500 mm |
| Expansion stroke | 0 mm, 150 mm (2 steps) |
| Lift stroke | 320 mm |
| Continuous speed (with load) | 8-15 spm steplessly variable |
| Crossbar bottom face height (4 seps | 890 mm, 925 mm, 960 mm, 995 mm |
| RPM of flywheel | 145.4 - 272.7 |
| Approximate weight of press | 2125 tonnes |
